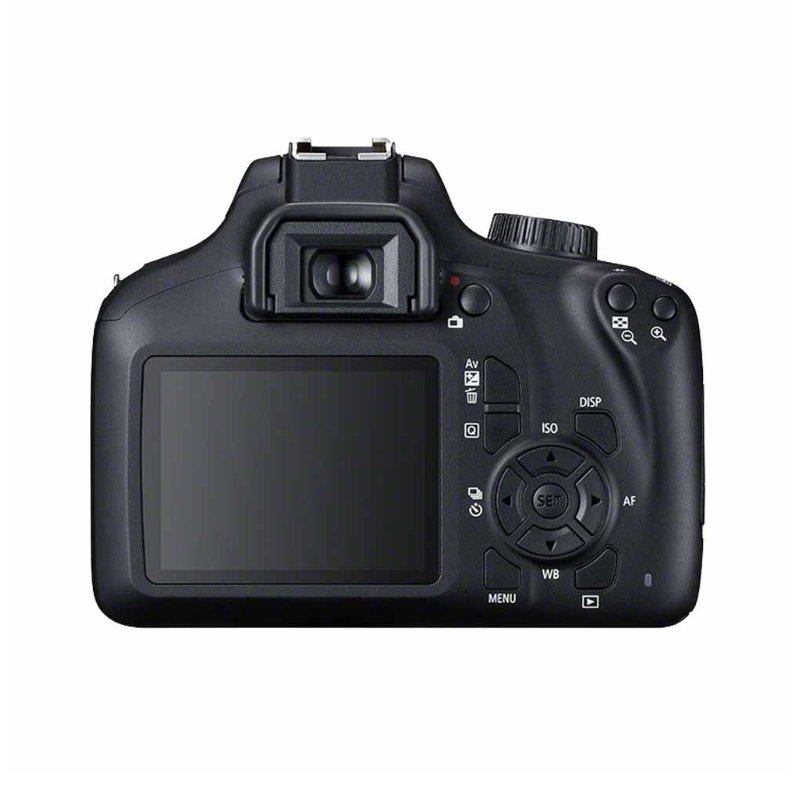

Canon EOS 4000D DSLR Camera – (EF-S 18-55 mm f/3.5-5.6 III Lens)

Approx. 22.3 mm x 14.9 mm

Approx. 18.0 megapixels

Approx. 18.7 megapixels

3:2

Built-in/Fixed

Manual cleaning and Dust Delete Data acquisition

RGB Primary Colour

DIGIC 4+

EF/EF-S

Equivalent to 1.6x the focal length of the lens

Optical Image Stabilizer provided on compatible lenses

Via optical viewfinder:

TTL secondary image-forming phase-difference detection system with AF-dedicated sensor

Via live view on LCD screen:

Contrast detection AF

Via optical viewfinder:

9 AF points (f/5.6 cross type at centre)

Via optical viewfinder:

Centre AF point: EV 0 -18 (at room temperature & ISO100)
Other AF points: EV 1 -18 (at room temperature & ISO100)

Via live view LCD screen:

EV 1 -18 (at room temperature & ISO100)

Via optical viewfinder:

AI Focus (Switches between One-Shot AF and AI SERVO AF automatically)

One Shot AF
AI Servo
Manual

Via live view LCD screen:

One Shot AF (Contrast detect AF)
Quick Mode (via phase detection AF sensor)
Manual

Via optical viewfinder:

Automatic selection from up to 9 points
Manual selection

Via live view on LCD screen:

FlexiZone – Freely position 1 AF point via manual selection
Live Mode – Automatic selection with face detection

Indicated by superimposed display in the viewfinder and on the LCD monitor

Yes

Locked when shutter button is pressed half way in One Shot AF mode. Customisation available via AE Lock Button

Intermittent firing of built-in flash or emitted by optional dedicated Speedlite (effective up to 4.0 m)

Selected on lens

Via optical viewfinder:

Evaluative via 63 zone dual-layer metering sensor (linked to all AF points)
Partial (centre, approx. 10% of viewfinder)
Centre-weighted average available

Via live view on LCD screen:

Evaluative metering (315 zones)

Via optical viewfinder:

EV 1-20 (at room temperature, ISO 100, evaluative metering)

Via live view on LCD screen:

EV 0-20 (at room temperature, ISO 100, evaluative metering)

Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.

Manual: By AE lock button in creative zone modes.

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

3 shots +/- 2 EV, 1/2 or 1/3-stop increments

AUTO(100-6400), 100-6400 in 1-stop increments ISO can be expanded to H: 12800 ¹

During Movie shooting: Auto (100-6400), 100-6400 (Whole stop increments)

Electronically-controlled focal-plane shutter, with electronic first curtain

30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Auto white balance with the imaging sensor

AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom (Approx. 2000 K – 10000 K).

White balance compensation:
Blue/Amber +/-9
Magenta/ Green +/-9.

Yes, 1 setting can be registered

+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/Green bias.

Pentamirror

Approx. 95%

Approx. 0.80x ²

Approx. 21mm (from eyepiece lens center)

Fixed at -1.0 m-1 (dpt)
– E-series Dioptric Adjustment Lenses can be used to make dioptric adjustments.

Fixed

Quick-return half mirror

Yes, assigned to SET button

On strap

6.8 cm (2.7″) TFT LCD, approx. 230 K dots

Approx. 100%

Approx. 120° vertically
Approx. 130° horizontally

Adjustable to one of seven levels

Quick Control Screen
Camera settings

9.2

up to 17mm focal length (35mm equivalent: 28mm)

Approx. 2 seconds

Auto, Manual Flash On/off

X-contact not equipped, Max. flash sync speed: 1/200 sec. with compatible Speedlites

+/- 2EV in 1/2 or 1/3 increments

Yes

Yes

Yes/No

E-TTL II with EX series Speedlites ³

Available via camera menu screen, except for wireless radio flash shooting settings

Scene Intelligent Auto, Creative Auto, Portrait, Landscape, Close-up, Sports, Food, Night Portrait, Program AE , Shutter priority AE, Aperture priority AE, Manual, Movie Mode

Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

sRGB and Adobe RGB

Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination (up to 20 lens profiles can be registered in camera)

Creative filters (Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) – during image Playback only

Single, Continuous, Self timer (2s, 10s, 10s + continuous shots 2-10)

Max. Approx. 3 fps in JPEG until memory card becomes full ⁴, 6 images RAW ^5 6

Approx. 100% (horizontally and vertically)

29.97 fps

Live Mode: One Shot AF (Contrast detect AF)
Quick Mode: One Shot AF (phase detection AF sensor)
Manual (Magnification 5x or 10x available)

Real-time evaluative metering with image sensor
Active metering time can be changed

Grid overlay (x2), Histogram

JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0),
RAW: RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant

Yes, RAW + Large JPEG

JPEG 3:2: (L) 5184 x 3456, (M) 3456 x 2304, (S1) 2592 x 1728, (S2) 1920 x 1280, (S3) 720 x 480
JPEG 4:3: (L) 4608 x 3456, (M) 3072 x 2304, (S1) 2304 x 1728, (S2) 1696 x 1280, (S3) 640 x 480
JPEG 16:9: (L) 5184 x 2912, (M) 3456 x 1944, (S1) 2592 x 1456 (S2) 1920 x 1080, (S3) 720 x 400
JPEG 1:1: (L) 3456 x 3456, (M) 2304 x 2304, (S1) 1728 x 1728, (S2) 1280 x 1280, (S3) 480 x 480

RAW: (RAW) 5184 x 3456

MOV (Video: H.264 inter frame (IPB), Sound: Linear PCM, recording level can be manually adjusted by user)

1920 x 1080 (30, 25, 24 fps)
1280 x 720 (60, 50 fps)
640 x 480 (30, 25 fps)

Max duration 29 min 59 sec, Max file size 4 GB

New folders can be manually created and selected

Consecutive numbering
Auto reset
Manual reset

10 Custom Functions

User copyright information (can be set in camera)
Image rating (0-5 stars)

Yes

1.5x – 10x enabled in 15 steps

(1) Single image with information (2 levels)
(2) Single image
(3) Index display (4/9 images)
(4) Jump Display (1/10/100 images, by Date, by Folder, Movies only, Stills only, by Rating)

Image selection: All images, by Date, by Folder, Movies, Stills, Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off
Transition Effect: Off, Slide 1, Slide 2, Fade 1, Fade 2, Fade 3
Background Music: On, Off

Brightness: Yes
RGB: Yes

Yes

Erase: Single image, selected images, all images in folder or all images on card
Protection: Erase protection for single image, all images in a folder or all images in the card

(1) Shooting menu (x4)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) My Menu

25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Update possible by the user.

Hi-Speed USB only

Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only) ⁷

Connectivity to Smart devices is possible via Canon Camera Connect app ⁸

Camera Access Point: WPA2-PSK with AES encryption or open

Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open

HDMI mini (Type-C) output

Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

Yes

SD card, SDHC card or SDXC card
