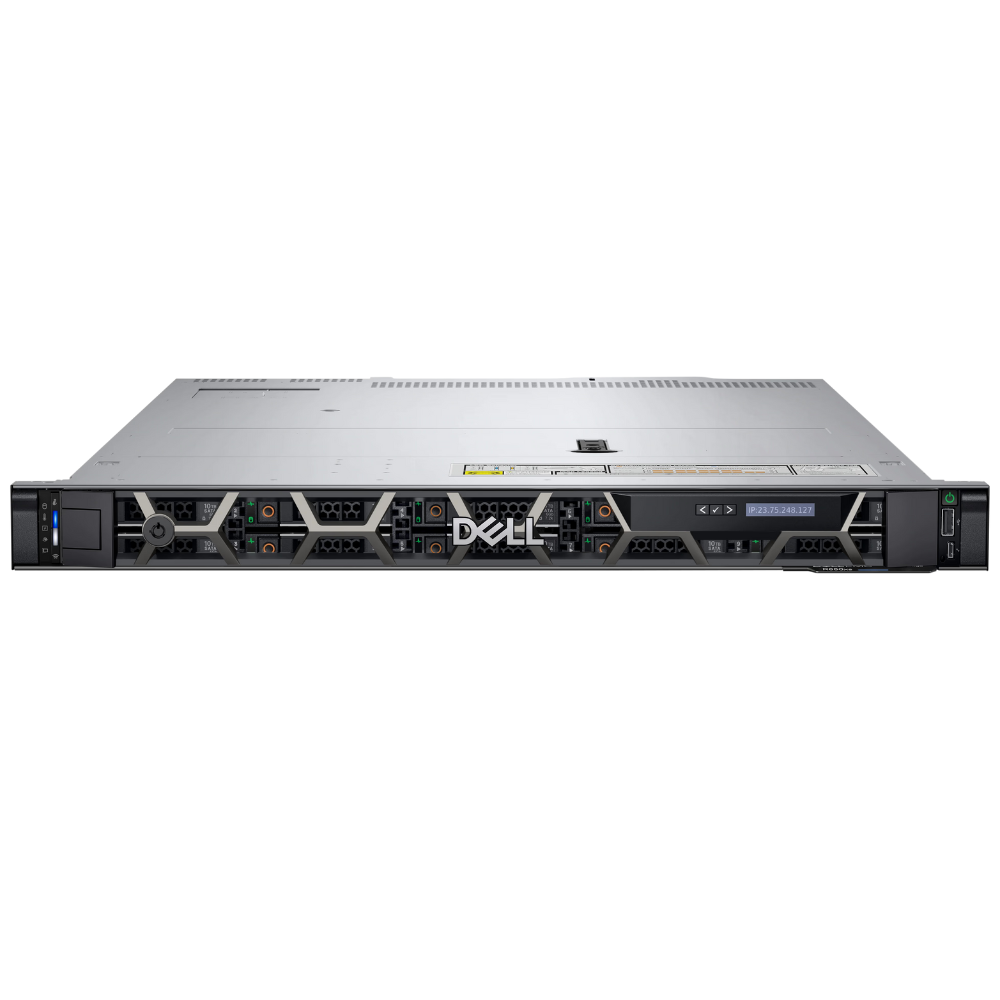

Dell PowerEdge R650xs Rack Server (PN: PER650xs6A)
The Dell PowerEdge R650xs Rack Server, combines robust processing power and efficient storage capabilities. Designed to meet the needs of small to medium-sized businesses, this server offers a reliable platform for data processing and storage, ensuring smooth operations and enhanced productivity. With its powerful Intel Xeon processors, ample memory, high-speed SAS hard drives, and advanced management features, the Dell PowerEdge R650xs is the ideal solution for businesses seeking reliable performance in a compact rack form factor.
Specifications:
| Specification | Details |
|---|---|
| Product Name | Dell PowerEdge R650xs Rack Server |
| Form Factor | Rack |
| Chassis | Up to 10 x 2.5″ SAS/SATA Hard Drives |
| CPU | 2 x Intel Xeon Silver 4314, 2.4GHz, 16C/32T, 10.4GT/s, 24M Cache, HT |
| Memory | 2 x 16GB RDIMM, 3200MT/s, Dual Rank |
| Hard Drives | 3 x 600GB SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug |
| Rails | A11 drop-in/stab-in Combo Rails Without Cable Management Arm |
| Bezel | Standard Bezels |
| Optical Drive | None |
| Network Connectivity | Broadcom 5720 Dual Port 1Gb On-Board LOM |
| Network Interface Card | Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0 with SR Optics |
| RAID Controller | PERC H755 SAS Front 8GB NV Cache, Low Profile, RAID 0,1,5,6,10 |
| Remote Management | iDRAC9, Enterprise 15G |
| Power Supply | Dual, Hot-plug, Platinum PSU (1+1), 600W, Mixed Mode |
| Warranty | 3 Year Prosupport Onsite Next Business Day |
Description
The Dell PowerEdge R650xs Rack Server is an entry-level performance server designed for efficient data processing and storage. It offers a versatile and reliable platform for small to medium-sized businesses. Here are the key features and specifications of the product:
- Chassis: The server comes with a chassis that can accommodate up to 10 x 2.5″ SAS/SATA hard drives, providing ample storage capacity for your data. The configuration supports 2 CPUs.
- Processors: The server is equipped with 2 x Intel Xeon Silver 4314 processors. Each processor has 16 cores and 32 threads, operating at a base frequency of 2.4GHz. They feature a 10.4GT/s bus speed, 24MB cache, Turbo Boost technology, and Hyper-Threading (HT) for enhanced performance.
- Memory: The server is equipped with 2 x 16GB RDIMM modules, providing a total of 32GB of memory. The memory operates at a speed of 3200MT/s and is dual-rank, allowing for efficient multitasking and data processing.
- Hard Drives: The server includes 3 x 600GB SAS ISE (Integrated Storage Element) hard drives. These hot-plug drives operate at 12Gbps and have a rotational speed of 10,000 RPM. They offer fast and reliable storage for your data.
- Rails: The server comes with A11 drop-in/stab-in Combo Rails, which allow for easy installation and removal. However, it does not include a cable management arm.
- Bezel: The server features a standard bezel, providing a sleek and professional appearance.
- Optical Drive: There is no optical drive included with this server.
- Network Connectivity: The server has a Broadcom 5720 dual-port 1Gb On-Board LOM (LAN on Motherboard) for standard network connectivity. Additionally, it features a Broadcom 57412 dual-port 10GbE SFP+ (Small Form-Factor Pluggable) OCP (Open Compute Project) NIC (Network Interface Card) 3.0 with SR (Short Reach) optics, providing high-speed networking capabilities.
- RAID Controller: The server includes a PERC H755 SAS front RAID controller with 8GB NV cache. It supports RAID levels 0, 1, 5, 6, and 10, allowing for data protection and improved storage performance. The controller is low profile and provides efficient storage management.
- Remote Management: The server is equipped with iDRAC9 (Integrated Dell Remote Access Controller), Enterprise 15G, which enables remote management and monitoring of the server’s hardware and software.
- Power Supply: The server includes dual, hot-plug, platinum power supplies with a total power output of 600W. The 1+1 configuration ensures redundancy and reliability.
- Warranty: The server comes with a 3-year Prosupport Onsite Next Business Day warranty, providing peace of mind and support for any potential hardware issues.
Overall, the Dell PowerEdge R650xs Rack Server offers a powerful and reliable computing platform with efficient storage capabilities. It is suitable for small to medium-sized businesses that require a cost-effective solution for their data processing and storage needs.
