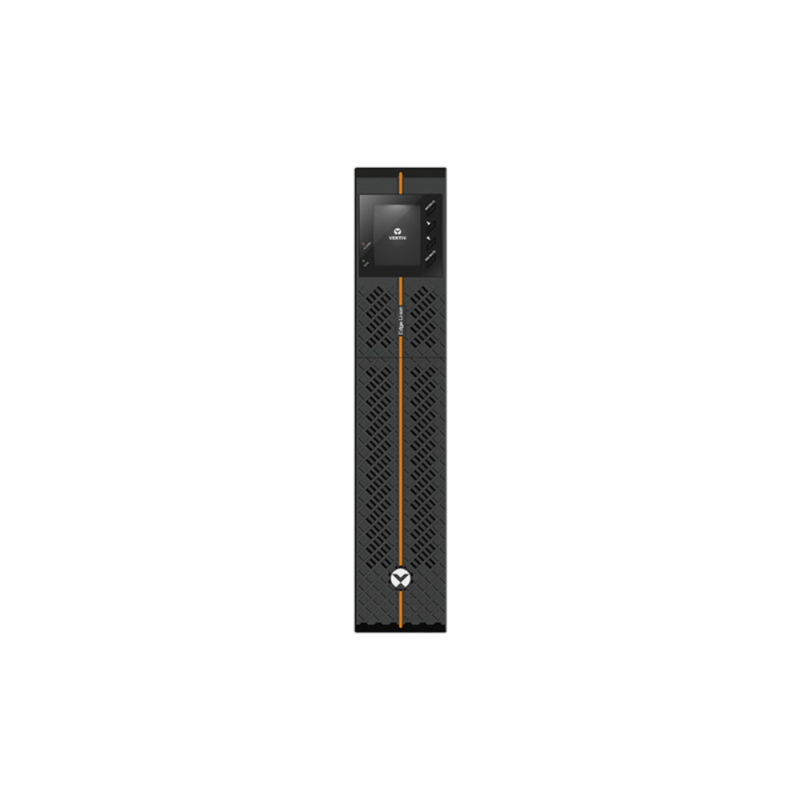

Vertiv Liebert EDGE 1ph line-interactive UPS, 3 kVA, 0.9PF, LCD Display
The EDGELI-3000IRT2U is a high-quality uninterruptible power supply (UPS) designed to provide reliable power protection for sensitive equipment. It offers a power rating of 3000VA or 2700W, making it suitable for a wide range of applications.
Vertiv Liebert EDGE-3000IRT2UXL Specifications:
| Specification | Details |
|---|---|
| Product Model | EDGELI-3000IRT2U |
| Power Rating | 3000VA / 2700W |
| Input Voltage | 230V AC |
| Output Voltage | 200/208/220/230(default)/240VAC; User configurable |
| Efficiency | Up to 98% |
| Wiring | Input: IEC C20 Output: 3+3 x IEC C13 & 1 x IEC C19 |
| Interface Options | USB & Slot for optional cards (Vertiv™ IS-UNITY) |
| Protocols | SNMP and web management enabled with optional Vertiv™ IS-UNITY communications cards |
| Control Panel | Colored graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration, and operation |
| Operating Temperature | 0 – 40ºC (+32 to +104 ºF) |
| Output Power Control | One group of output power controllable outlets (x3 IEC60320 C13) |
| Listings | CE, CB, EAC, RCM, UKCA, UN38.3 |
| Topology | Line interactive (pure sinewave) |
Key Specifications:
- Power Rating: This UPS has a power capacity of 3000VA (Volts-Amps) or 2700W (Watts), ensuring that it can handle significant power demands.
- Input Voltage: It operates with an input voltage of 230V AC, which is the standard voltage for many electrical systems.
- Output Voltage: The output voltage is configurable, offering multiple options including 200V, 208V, 220V, 230V (default), and 240V AC. This flexibility allows users to adapt the UPS to their specific power requirements.
- Efficiency: The UPS boasts high efficiency, with a rating of up to 98%, ensuring that it minimizes energy waste while providing reliable power.
- Wiring: The input features an IEC C20 connector, while the output includes 3+3 x IEC C13 outlets and 1 x IEC C19 outlet. These connectors enable easy and flexible connections to various devices.
- Interfaces/Ports: It comes with USB connectivity for basic monitoring and management. Additionally, there’s a slot available for optional communication cards (Vertiv™ IS-UNITY), enabling SNMP and web management for enhanced control and monitoring.
- Control Panel: The UPS is equipped with a colored graphic LCD control panel that senses orientation, providing valuable information about the UPS status. This feature makes installation, configuration, and operation easy.
- Operating Conditions: It’s designed to operate within a temperature range of 0 to 40°C (32 to 104°F), ensuring it can handle a wide range of environmental conditions.
- Output Power Control: There’s a group of power-controllable outlets (x3 IEC 60320 C13), allowing users to manage power distribution to connected devices.
- Listings: The UPS meets several safety and regulatory standards, including CE, CB, EAC, RCM, UKCA, and UN38.3, ensuring compliance and reliability.
- Topology: The UPS operates in line-interactive mode, providing pure sinewave power, which is ideal for protecting sensitive equipment from power fluctuations and outages.
Overall, the EDGELI-3000IRT2U UPS offers robust power protection, customizable output, and advanced management features, making it an excellent choice for critical systems in various settings.
