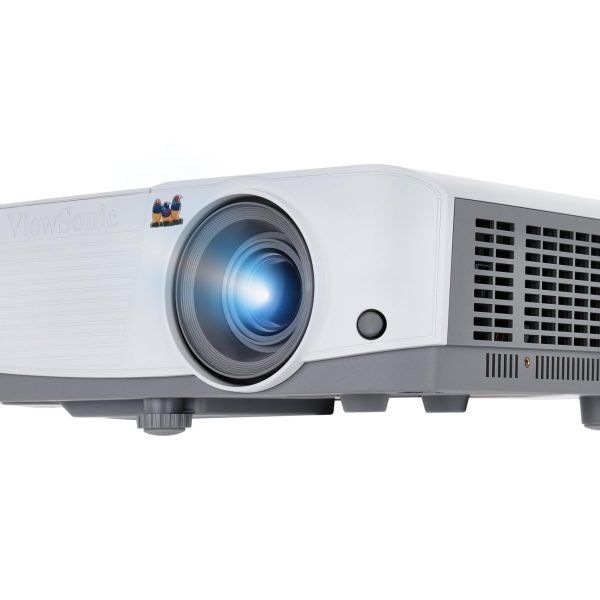

ViewSonic PA503S 3600-Lumen SVGA DLP Projector

Projection & Display

• Display Type: DLP, 0.55″ SVGA (800×600) native resolution

• Brightness: 3600 ANSI lumens

• Contrast Ratio: 22,000:1 (with SuperEco mode)

• Color: 1.07 billion colors, SuperColor™ technology, 5 viewing modes (Presentation, Standard, Photo, Movie, Brightest)

Lens & Image Adjustment

• Throw Ratio: 1.96–2.15:1

• Image Size: 30″ – 300″, with ~100″ at ~4 m throw distance

• Zoom/Focus: 1.1× manual optical zoom, ±40° vertical keystone correction

• Projection Offset: 120% ±5%

Lamp & Performance

• Light Source: 190 W UHP lamp

• Lamp Life: 5,000 h (normal) / 15,000 h (SuperEco)

• Noise: 31 dB (Normal), 27 dB (Eco)

• Input Lag: 16 ms (1080p/60)

Compatibility & Support

• Supported Resolutions: VGA to Full HD (1920×1080)

• HDTV support: 720p, 1080i/p

• 3D playback supported via HDMI

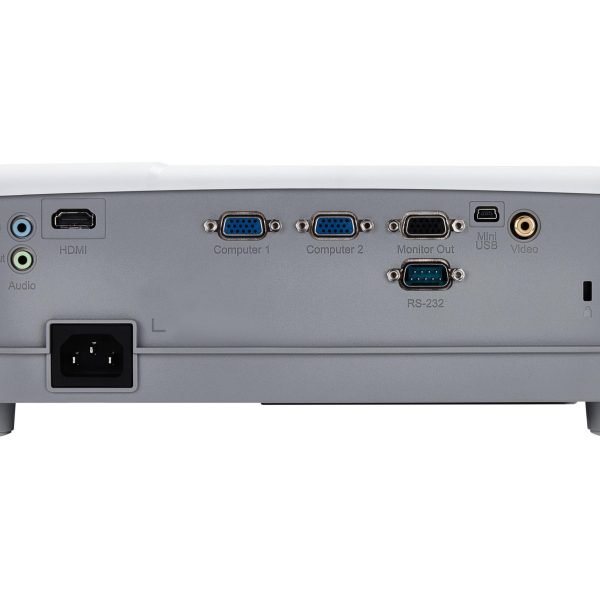

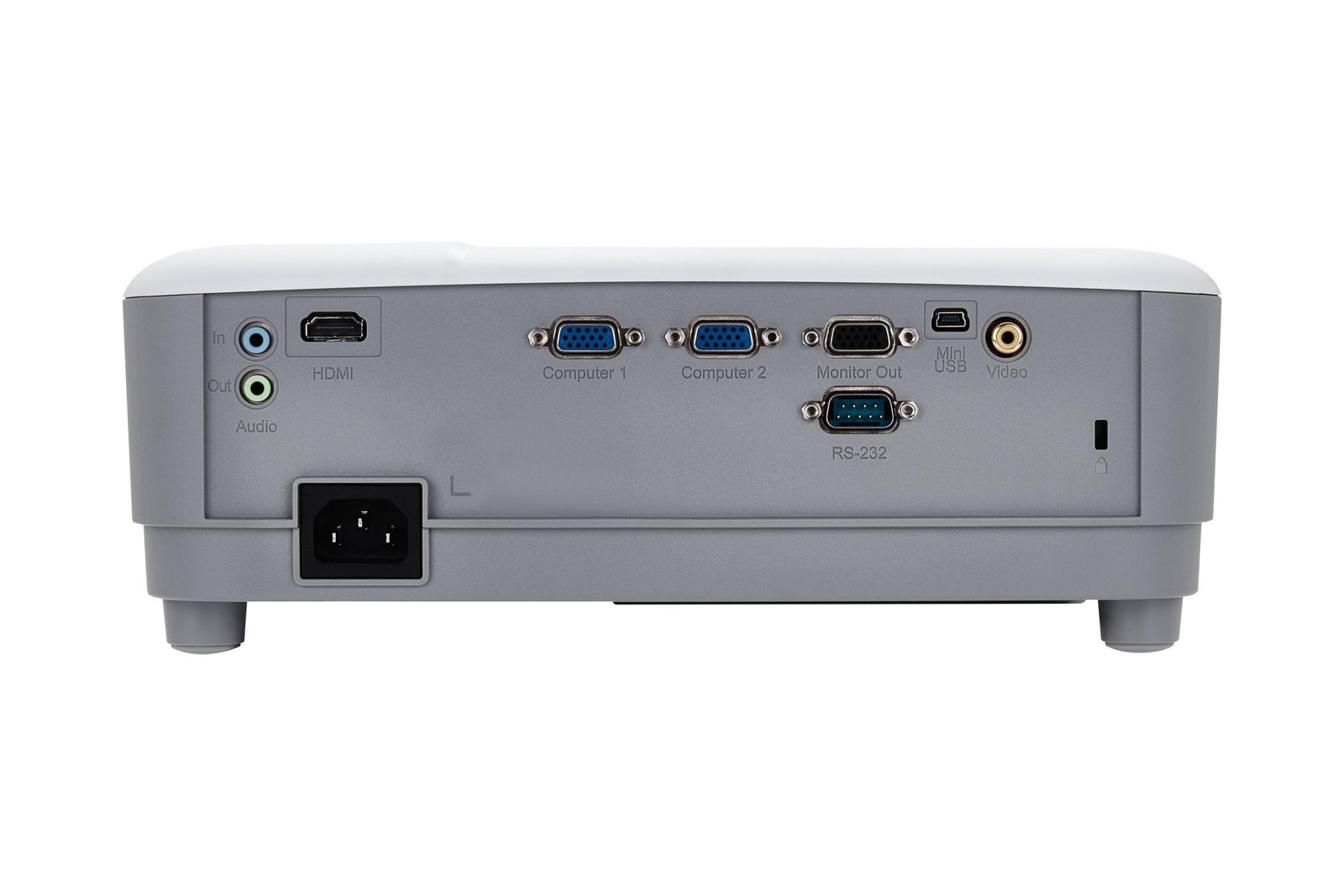

Connectivity

• Inputs: 1× HDMI, 2× VGA, 1× Composite RCA, Audio In (3.5 mm)

• Outputs: VGA out, Audio out (3.5 mm)

• Controls: RS-232 port, Mini-USB for service

• Integrated 2 W speaker

Build & Power

• Dimensions: 294 × 218 × 110 mm

• Weight: 2.2 kg (4.9 lb)

• Power Input: 100–240 V AC, 50/60 Hz

• Power Consumption: 260 W (Normal), <0.5 W standby

• Operating Temperature: 0–40 °C

User-Friendly Features

• Blank Timer, Presentation Timer, Direct Power On/Signal Power On

• Quick shutdown (no cool-down wait)

• Remote code configuration for multiple projectors
