4 Channel UNV NVR


Compare
  • 4-channel input
  • Third-party IP cameras supported with ONVIF conformance
  • HDMI and VGA output up to 1080P
  • Up to 4 Megapixels resolution recording
  • Accurate retrieval, instant playback
  • 1 SATA HDD up to 6 TB
  • Plug & Play with up to 4 independent PoE network interfaces
  • Support for P2P, UPnP, NTP, DHCP, PPPoE
  • Support for mobile client access

KShs12,000.00

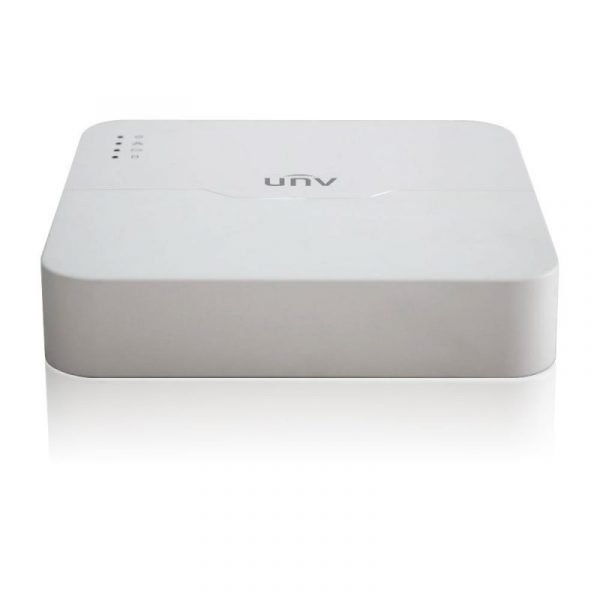

The NVR201-04LP is a 4-channel NVR with 4 poE inputs of the Uniview brand. With this network video recorder, you can connect IP cameras to a maximum resolution of 4MP (on 2 channels). This recorder also supports a 1080P recording for 4 channels at 25fps.

This compact white NVR comes with a 1 SATA connector. This connector allows you to connect a hard drive to a size of 6Tb. On the backside there are 2 USB connectors for connecting a mouse and / or USB storage. In addition, this recorder has a VGA and HDMI output for connecting a monitor to a resolution of 1080P.

Through the Guard Viewer mobile phone application, you can access the recorder on an iOS or Android device and view images, play back, and back up. The recorder supports a handy P2P feature, so you do not have to forward any ports in a router.




Category:

Model: NVR201-04LP
Video/Audio Input
IP Video Input: 4-ch
Two-way Audio Input: 1-ch, RCA
Network
Incoming Bandwidth: 40Mbps
Outgoing Bandwidth: 64Mbps
Remote Users: 128
Video/Audio Output
HDMI/VGA Output: HDMI/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution: 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output: 1-ch, RCA
Synchronous Playback: 4-ch
Decoding
Compression: H.264
Live view/Playback: 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 2 x 4MP@20, 4 x 1080P@30
Hard Disk
SATA: 1 SATA interface
Capacity: up to 8TB for each disk
External Interface
Network Interface: 1 RJ-45 10M/100M Self-adaptive Ethernet Interface
USB Interface: Rear panel: 1 x USB2.0, 1 x USB3.0
PoE
Interface: 4 independent 100 Mbps PoEnetwork interfaces
Supported Standard: IEEE 802.3at
General
Power Supply: 48 VDC
Consumption (without HDD): ≤8 W
Working Temperature: -10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity: 10% ~ 90%
Dimensions: 205 ×205 × 42mm (8.1” × 8.1” × 1.7”)
Weight (without HDD): ≤ 0.58 Kg (1.27lb)
