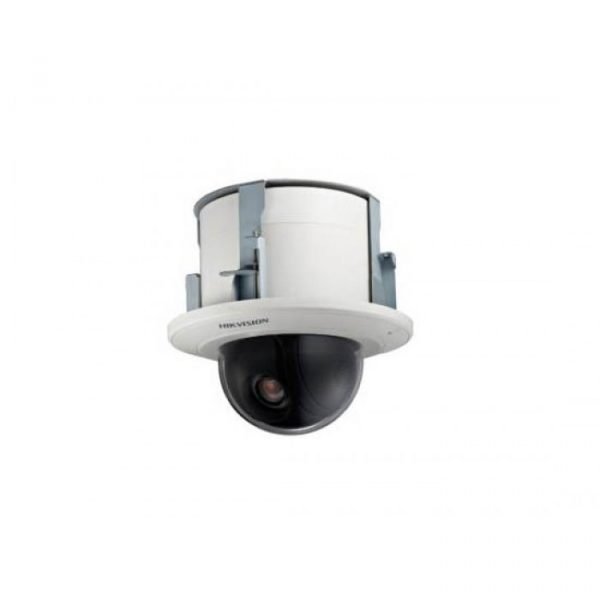

Hikvision DS-2DE5320W-AE 3MP 5″ PTZ Camera


Compare
  • 1/2.8’’ Progressive Scan CMOS
  • 2048 × 1536@30fps
  • 3D DNR, D WDR
  • 3D intelligent positioning
  • 20X Optical Zoom
  • IP66 rating

KShs70,000.00

Hikvision DS-2DE5320W-AE Network Speed Domes adopt 1/2.8″ progressive scan CMOS chip. With the 20X optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

Category:

Camera
Image Sensor:   1/2.8″ Progressive Scan CMOS
Effective Pixels: 2048(H)x1536(V)
Signal System: PAL/NTSC
Minimum Illumination: F1.6, AGC On: Color: 0.05 lux, B/W: 0.01 lux
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: DWDR
Shutter Time: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 2 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual

Lens
Focal Length: 4.7-94mm, 20x
Zoom Speed: Approx.3s(Optical Wide-Tele)
Angle of View: 58.3-3.2 degree (Wide-Tele)
Minimum Working Distance: 10-1000mm(Wide-Tele)
Aperture Range: F1.6-F3.5
Pan & Tilt

Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1° -250°/s,
Pan Preset Speed: 300°/s
Tilt Range: -5°~90° (Auto Flip)
Tilt Speed: Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Alarm
Alarm Input: 2
Alarm Actions: Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input: 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max. Image Resolution: 1920×1080
Main Stream: 50Hz:25fps (2048×1536,1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720); 60Hz:30fps(2048×1536,1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
Video Compression: H.264 / MJPEG
ROI encoding: Support 2 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: Up to 20 users
Dual Stream: Support
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW), host authentication (MAC address)
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +
General
Menu Language: English
Power Supply: AC 24V and PoE (802.3at, class4)
Power Consumption: Max. 18W
Working Temperature/Humidity: -30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome ) 90% or less
Protection Level: IP66, IK10 TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimensions: Φ220×305mm (Φ8.66”×12.02”)(Outdoor)/ Φ183.4×243mm(Φ7.22”×9.56”) (Indoor ceiling)/Φ245×236mm(Φ9.65”×9.29”) (Indoor in-ceiling)
Weight (approx.): 3Kg (6.61Ibs)
Mount Option: Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
